5m Aluminium Telescopic Levelling Staff

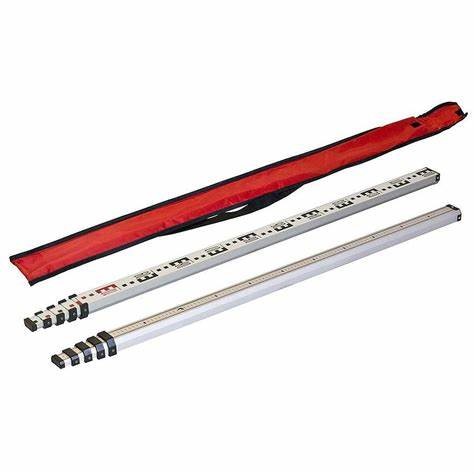

TSA5 Telescopic 5m Double Face Aluminum Levelling Staff Survey Rod with High Quality​

Model: TSA5

Specifications:

What kinds of Levelling Staffs Leosurvey can supply?

A. Fixed Length Highest Standard Accuracy Invar Barcoded Levelling Staff/Surveying Rods for Digital Levels

2m/3m Barcodes Staff for different brands digital levels like Topcon, Leica, Trimble, GeoMax, South, FOIF, Sokkia.

Customized length invar staff like 50cm, 1m or any special short length.

B. Fixed Length High Standard Accuracy Invar Graduated Staff for Optical Levels

2m/3m Graduated Staff for Optical Levels.

Graduation options: 5mm/10mm

C. Fixed Length High Accuracy Manganese Staff Dual Faces for Digital Level and Optical Levels

2m/3m Manganese Staff with Dual faces, one face with barcoded staff can be supplied for different brands like Topcon, Leica, Trimble, GeoMax, South, FOIF, Sokkia.

Other Face can be used for any brands optical levels.

Customized Length Manganese staff like 50cm, 1m or any special short length.

D. Aluminum Telescopic Levelling Staff

3m/4m/5m/7m

Graduation options are: mm/cm/feet/E word

Features:

1. Made of high quality white powder-coated aluminum tubes (thickness 1.0 mm), anti-corrosion and rust proof.

2. Thickened wear resistant stainless steel substrate.

3. The aluminum sections are in contrasting white, red and black colors.

4. Projecting profiled edges additionally protect the levelling graduation on the front side.

Staff and Its Graduation

Levelling staff.

Two "E" pattern staffs are shown on the right, note slight differences in the marking and numbers. The "E" pattern is designed to make it easy to read a small section of the scale when seen through a telescope.

The staff is simply a large ruler, available in lengths of 3, 4 or 5 metres and usually made of aluminium with telescopic sections.

The sections have locking buttons to ensure accurate length is maintained.

Some staffs also have an extended length scale in mm on the back.

Measurements are in metres and cm (10mm blocks) which enable heights to be estimated to 1 mm. Alternating colours are used to differentiate each metre length, the most common being black and red on a white background.

Major graduations occur at 100 mm intervals and are denoted by figures. Minor graduations are at 10 mm intervals and form coloured squares or intervening spaces. The lower 50 mm of any 100 mm block are joined by a band to form the distinctive E pattern which is designed to make reading a small section of the staff in the telescope easier.

Staff Graudation Choices:

Leosurvey Aluminum Staff Details
