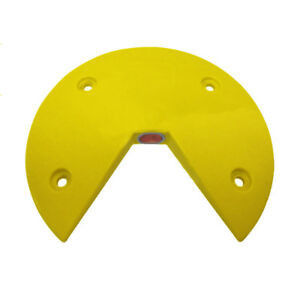

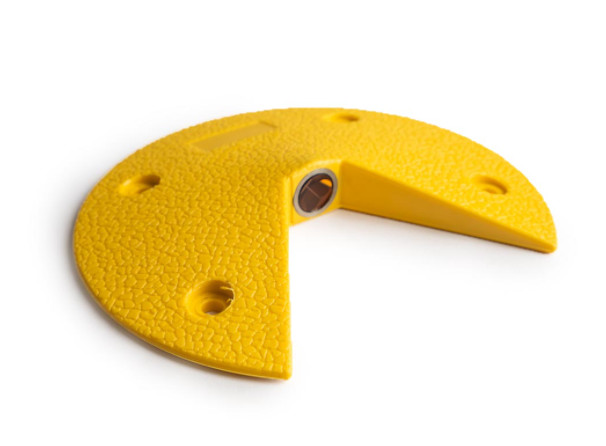

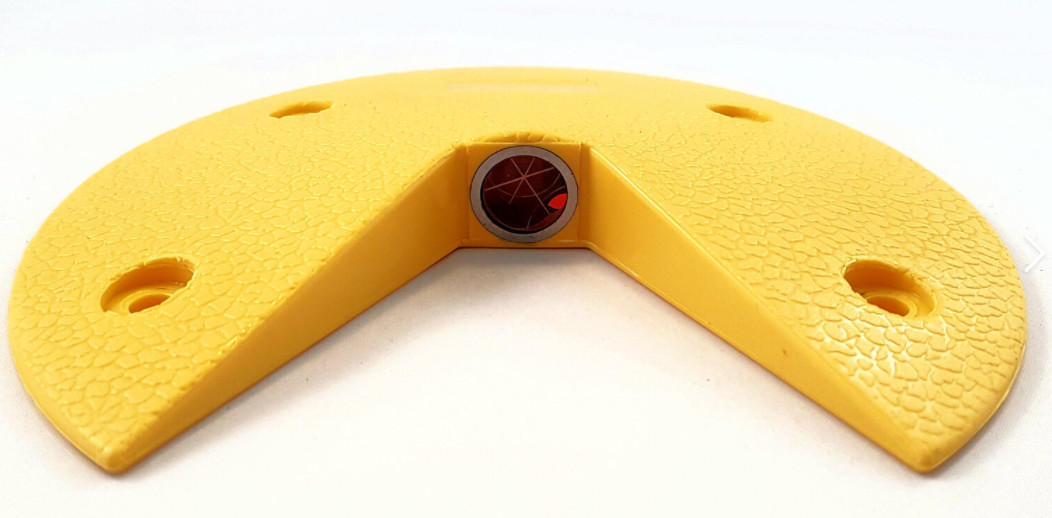

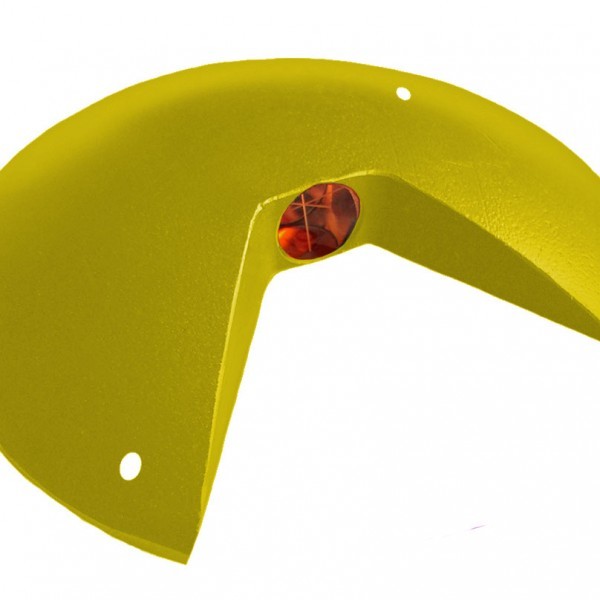

Thermoplastic Survey Mini Prism 12.7mm Monitoring Mini Prism

  • Thermoplastic Survey Mini Prism 12.7mm Monitoring Mini Prism
  • Thermoplastic Survey Mini Prism 12.7mm Monitoring Mini Prism
  • Thermoplastic Survey Mini Prism 12.7mm Monitoring Mini Prism
  • Thermoplastic Survey Mini Prism 12.7mm Monitoring Mini Prism
Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number ADSmini112
Minimum Order Quantity 5 Pieces
Price 11USD~15USD
Packaging Details Box and Carton
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ADSmini112 Shape Square
Color Yellow Body Material Nylon Thermoplastic
Measure With Total Station Prism Diameter 12.7mm
Prism Height 9.6mm Accuracy 5 Arc Seconds
Max Measurement 600m Suits All Total Station
Highlight

thermoplastic Survey Mini Prism

,

12.7mm Survey Mini Prism

,

thermoplastic monitoring mini prism
Leave a Message
Product Description

Single Road Monitoring Prism Mini Survey Prism for Total Stations



Model: ADSmini112



Specifications:

Model ADSmini112
Shape Square
Body Nylon thermoplastic
Measure with Total Station
Prism Diameter 12.7mm
Prism Height 9.6mm
Accuracy 5 Arc Seconds
Color Yellow
Max Measurement 600m
Suits All total stations



Introduction:

Leosurvey High Accuracy Single Road Monitoring Prism features a housing that is manufactured from a special nylon thermoplastic blend which offers superior strength and longevity, that provides substantial cost savings.



It contains a 12.7 mm high accuracy optical coated prism. It is extremely durable and designed to withstand highway traffic when adhered to roadway using any approved AASHTO rated adhesive.

The prism located inside the housing is angled at 10° with line-of-sight the AMTS.



The road prism can accommodate misalignments within ± 10°. For example, the 20° road prism is usable with angles between 10° to 30°.

The 10° road prisms are used with AMTS which are secured on tripods. 20° prisms are used with AMTS mounted on buildings 3 to 7 stories high, and 40° prisms are used with AMTS mounted on buildings 8+ stories high.

Applications:
Road prisms are recommended with automated total station (AMTS) to monitor settlement and deformation of roads, buildings, pavement, and other surfaces.

Features:

  • Shock-Resistant housing for extended use on active roads.
  • Built-in mounting holes for short-term and long term use.
  • Low-profile design is hard to detect for motorist.
  • Housing Dimensions: 5.9″ (150mm) diameter x 0.07″ (18mm) height
  • Materials: Housing made from nylon thermoplastic blend, Optical glass prism BK7 precision annealed.
  • Prism: 0.5″ (12.7mm) diameter
  • Measuring distance: 600M
  • Constant: 0
  • Accuracy: 5 arc sec
