Survey Magnetic Ball Monitoring Prism 25.4mm Railway Measuring Prism
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ADS114 |
| Minimum Order Quantity | 5 Pieces |
| Price | 50USD~60USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ADS114 | Color | Silver And Black |
|---|---|---|---|
| Support Material | Aluminum | Ball Diameter | 45mm |
| Prism Diameter | 25.4mm | Constant | 17.5mm |
| Prism Angular Accuracy | ≤5" | Surface Quality | 60/40 |
| Suits | All Total Station | Used For | High-speed Track And Railway |
| Highlight | Survey Magnetic Ball monitoring prism,railway monitoring prism,25.4mm railway measuring prism |
||
Product Description

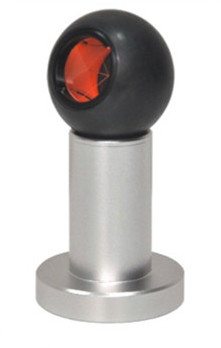

Engineering Testing Mini Survey Prism Ball with Magnetic Base for Precision Survey Measuring
Model: ADS114
Specifications:
| Model | ADS114 |
| Color | Silver and Black |
| Support Material | Aluminum |
| Ball Diameter | 45mm |
| Prism Diameter | 25.4mm |
| Prism Coating | Copper |
| Constant | 17.5mm |
| Prism Angular Accuracy | ≤5" |
| Surface Quality | 60/40 |
| Suits | High-speed track and railway |
Features:
1. Prism center is located in center of the ball.
2. Housing diameter 45mm and prism diameter 25.4mm.
3. Prism offset 17.5mm.
4. With magnetic base/holder.
Introduction:
Reflector for Fixed Installations/Anti vandal prism
Housing: Material: 45 Steel;
Diameter: 45 mm.
Prism diameter: 25.4mm.
Air path corner cube in black spherical housing.
Applied for- Precision measurements- Automatic measurements.
Apply to high-speed track and trail.

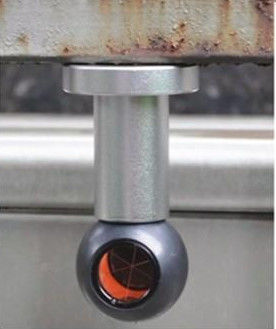

Magnetic Base:
Strong magnet, we can use it on metal bridges and rails and other places that can be attracted by magnets.

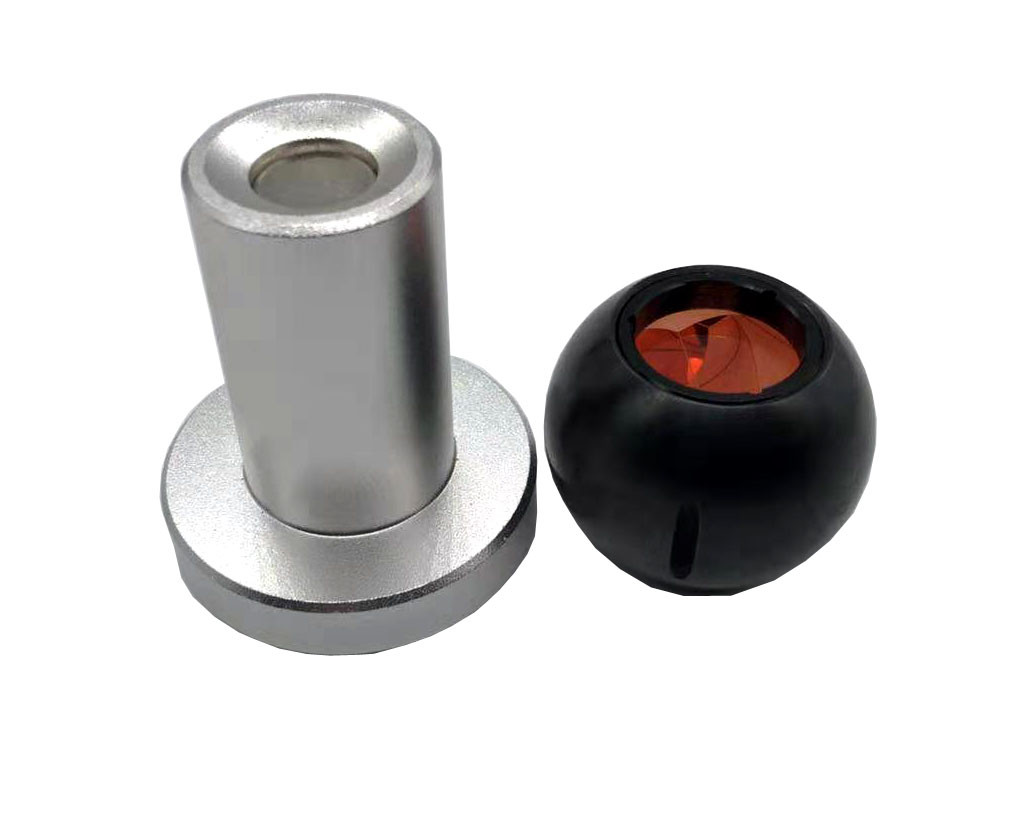

Package Contents:
1pc Ball prism
1pc Magnetic Base
