2m Telescopic Levelling Staff With Invar Tape For Topcon DL101C
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ISBP102 |
| Minimum Order Quantity | 2pcs |
| Packaging Details | Aluminum Case and Carton Box |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ISBP102 | Used For | Topcon DL-101C/102C Digital Level |
|---|---|---|---|
| Random Graduation Errors | ≤ 2μm | Length | 2m |
| Net Weight | 7.5Kg/Pc | Gross Weight For 2pcs With Package | 24Kg |
| Material | Invar Tape | Color | Yellow |
| LED Light Strip | Optional | Graduation | Barcoded |
| Invar Tape Specification | 0.7×25mm | Rod Body Straightness | ≤4mm |
| Error Of Every Meter | ≤0.04mm | Package | Aluminum Case |
| Catagory | Level Accessory | ||
| Highlight | 2m Telescopic Levelling Staff,Invar Tape Telescopic Levelling Staff,Yellow Telescopic Levelling Staff |
||
Product Description

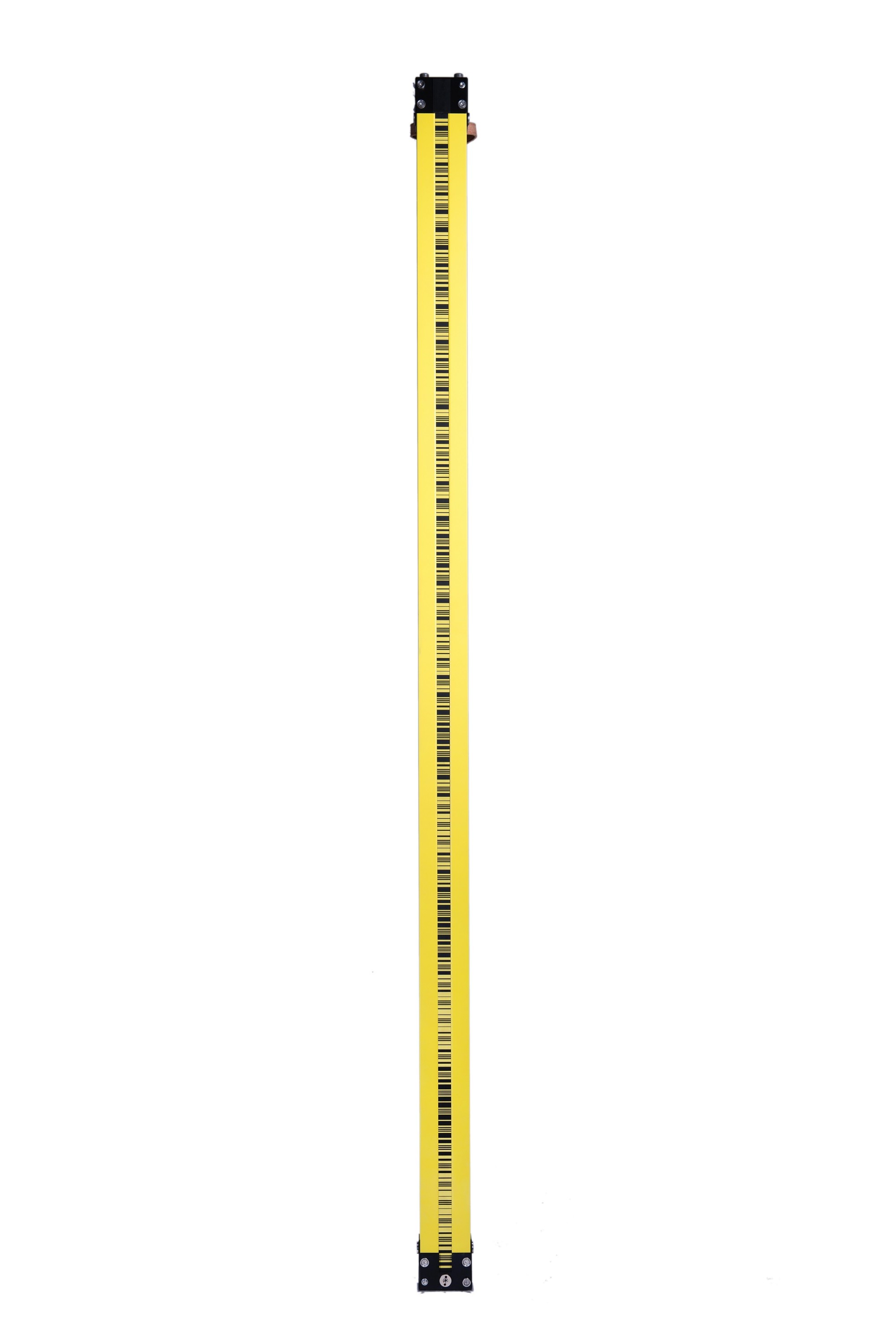

2m High Precision Level Staff with Invar Tape for Topcon DL101C/102C Electronic Digital Level
Model: ISBP102
Specification:
| Model | ISBP102 |
| Used For | Topcon DL101C/102C digital level |
| Random Graduation Errors: | ≤ 2μm |
| Length | 2m |
| Net Weight | 7.5Kg/Pc |
| Gross weight for 2pcs with Package | 24Kg |
| Material | Invar tape |
| Color | Yellow |
| LED Light Strip | Optional |
| Invar Tape Specification | 0.7×25mm |
| Rod Body Straightness | ≤4mm |
| Error of Every Meter | ≤0.04mm |
| Package | Aluminum Case |
Leosurvey Invar Staff:
- Superior graduation accuracy and high quality image of stripes.
- Body of the Invar staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.
- Invar tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.
- Foot plate of chrome-alloy; hardened, smooth and ground.
- Equipped with two circular bubbles and fold-away handles. Handles zinced and powder-coated.
- Staff Length is customizable according to customers’ needs.
- LED strip lights is optional. It can be used in mines, tunnels, night-time construction sites. Equipped with two pieces of power bank.
What We can Supply:

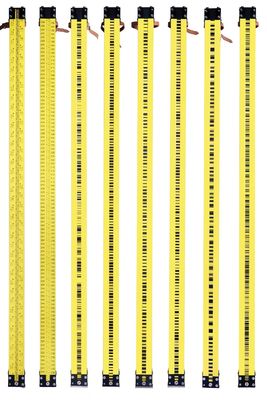

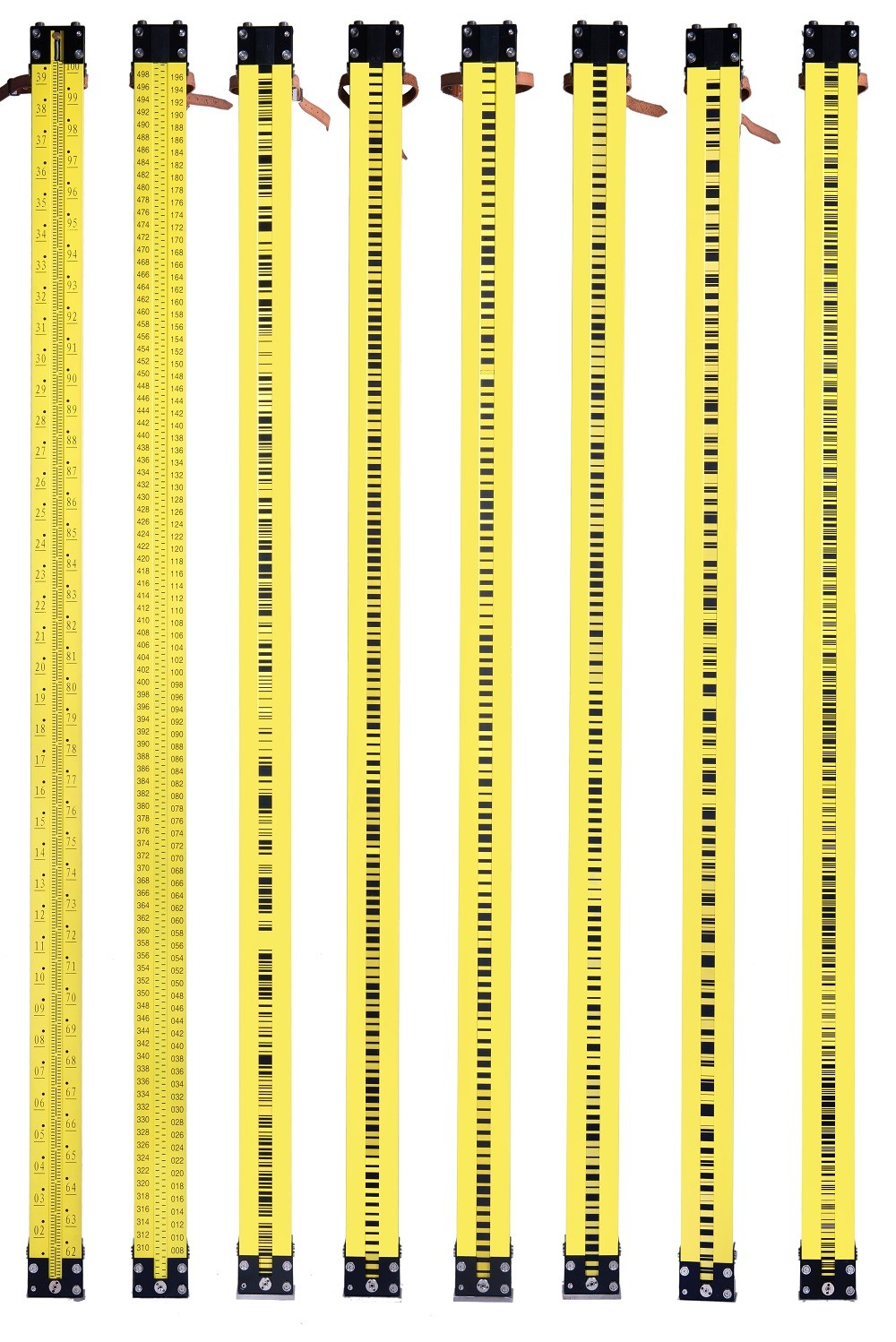

We can supply both barcoded staff and graduated staff for customers. Barcode marking staff is used for digital levels and graduated marking staff is used for optical levels.
So far we have supplied levelling staffs for many different levels brands like Trimble, Topcon, Leica, GeoMax, South, Sokkia, etc.
50cm 1m 2m 3m are available.
Electronic Digital Level DL-101C/102C
TOPCON's DL-101C / 102C takes accuracy and ease of operation to a higher level with its Advanced Image Processing Technology. The outstanding features make the DL-101C / 102C ideal for high precision applications including the performance of 1st and 2nd order leveling and deformation monitoring.
Faster Automatic Measurement
When used with TOPCON's unique patterned staff, height and distance can be automatically determined digitally by the DL-101C / 102C.
Since it's a fully automatic electronic measurement, there is no need to make an optical reading! You just sight the staff, focus, and press the measurement button. It's that simple! The results appear in the clearly visible display window after about three seconds.

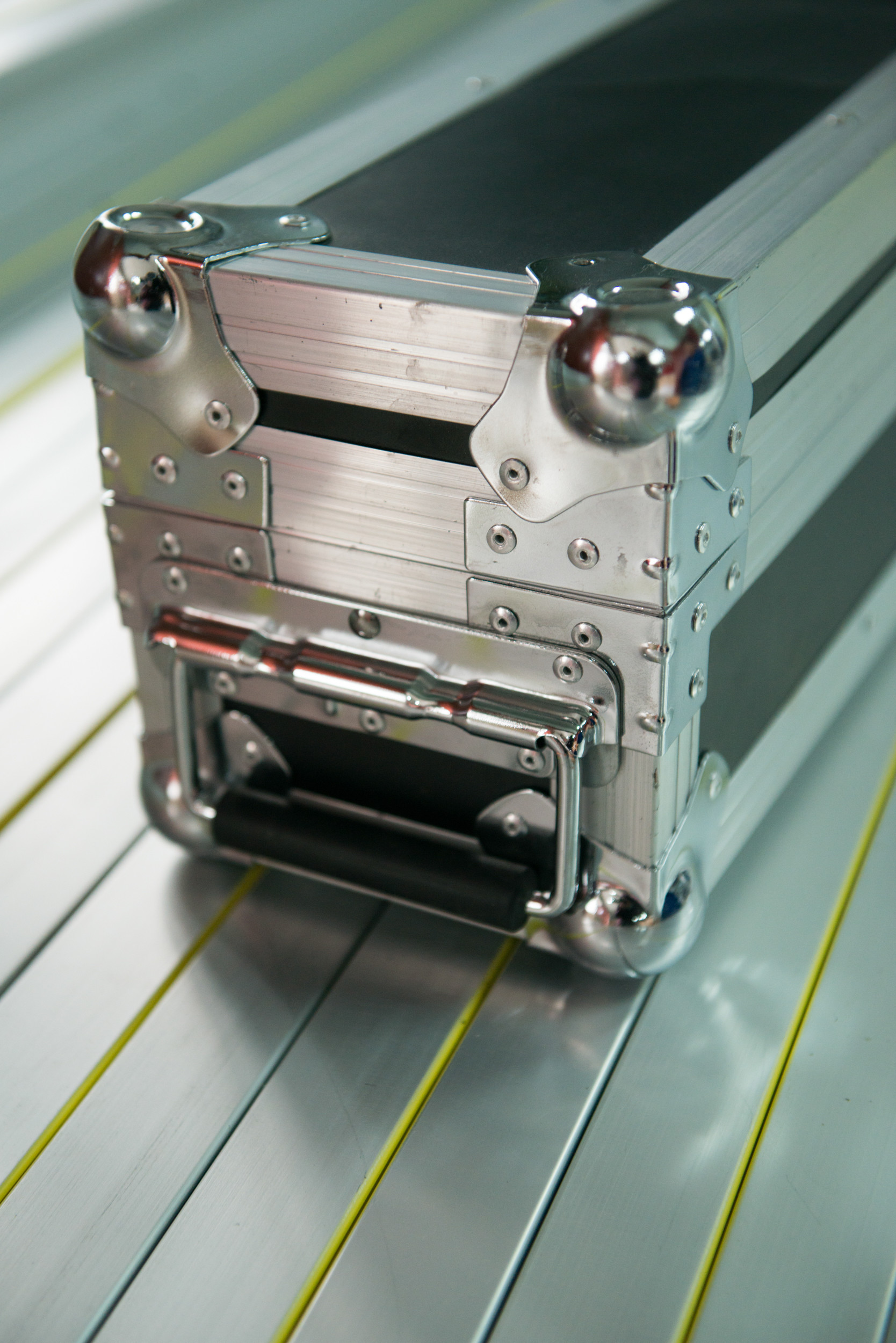

Package: 2pcs/pair in one aluminum case
