2m Manganese Levelling Surveyors Measuring Rod With Dual Face

  • 2m Manganese Levelling Surveyors Measuring Rod With Dual Face
  • 2m Manganese Levelling Surveyors Measuring Rod With Dual Face
Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number MSLD3
Minimum Order Quantity 2pcs
Packaging Details Aluminum Case and Carton Box
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model MSLD3 Used For Leica DNA And LS Digital Level And Optical Level
Random Graduation Errors ≤ 20μm Length 2m
Net Weight 5Kg/Pc Gross Weight For 2pcs With Package 7Kg
Material Manganese Tape Color Yellow
LED Light Strip Optional Condition New
Manganese Tape Specification 0.4×33mm Rod Body Straightness ≤4mm
Error Of Every Meter ≤0.04mm Package Aluminum Case
Error Of Zero Point ≤0.25mm
Highlight

2m Levelling Surveyors Measuring Rod

,

Manganese Levelling Surveyors Measuring Rod

,

Manganese Tape Surveyors Measuring Rod
Leave a Message
Product Description

Dual Face High Precision 3m Manganese Levelling Staff Rods for Leica Digital Level DNA and LS and Optical Level



Model: MSLD3



Specification:

Model MSLD3
Used For Leica DNA and LS digital level
Random Graduation Errors: ≤ 20μm
Length 2m
Net Weight 7Kg/Pc
Gross weight with Package 10Kg
Material Manganese tape
Color Yellow
Graduation Two Faces
Manganese Steel Specification 0.4×33mm
Rod Body Straightness ≤4mm
Error of Every Meter ≤0.25mm
Error of Zero Point: ≤0.25mm
Package Aluminum Case



Manganese Leveling Staff Introduction:

Leosurvey high precision Manganese levelling staffs are used for Third-order and Fourth-order leveling. The levelling body is made of aluminum alloy material, which assures less possibilities of transformation during using. Additionally, light weight body helps the users to carry and perform easily.



The levelling tape is made of Manganese Steel (Specification is 0.4×33mm). The coefficient of thermal expansion of Manganese Steel is (10.6~12.2) ×10-6/℃/M. Small coefficient of thermal expansion and extra 3-kilogramme pulling force added at the top of levelling tape, make sure less external influence during the process of using.



Currently, regular optional lengths are 2 meters and 3 meters . Front face barcode tape can be used for digital levels and back face can be used for optical levels. We can customize the staff with your requirements.



Manganese Staff Features:

  1. Staff tape is made of high quality Manganese steel. The coefficient of thermal expansion is very small (10.6~12.2 ×10-6/℃/M)
  2. Superior graduation accuracy and high quality image of stripes.
  3. Body of the staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.
  4. The tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.
  5. Foot plate of 304 stainless steel; hardened, smooth and ground.
  6. Double face marking system; can be used for digital levels and optical levels

     7. Equipped with circular bubble and handles. Handles zinced and powder-coated



Package: 2pcs/aluminum Case; With extra outer carton box



Detailed Pictures:

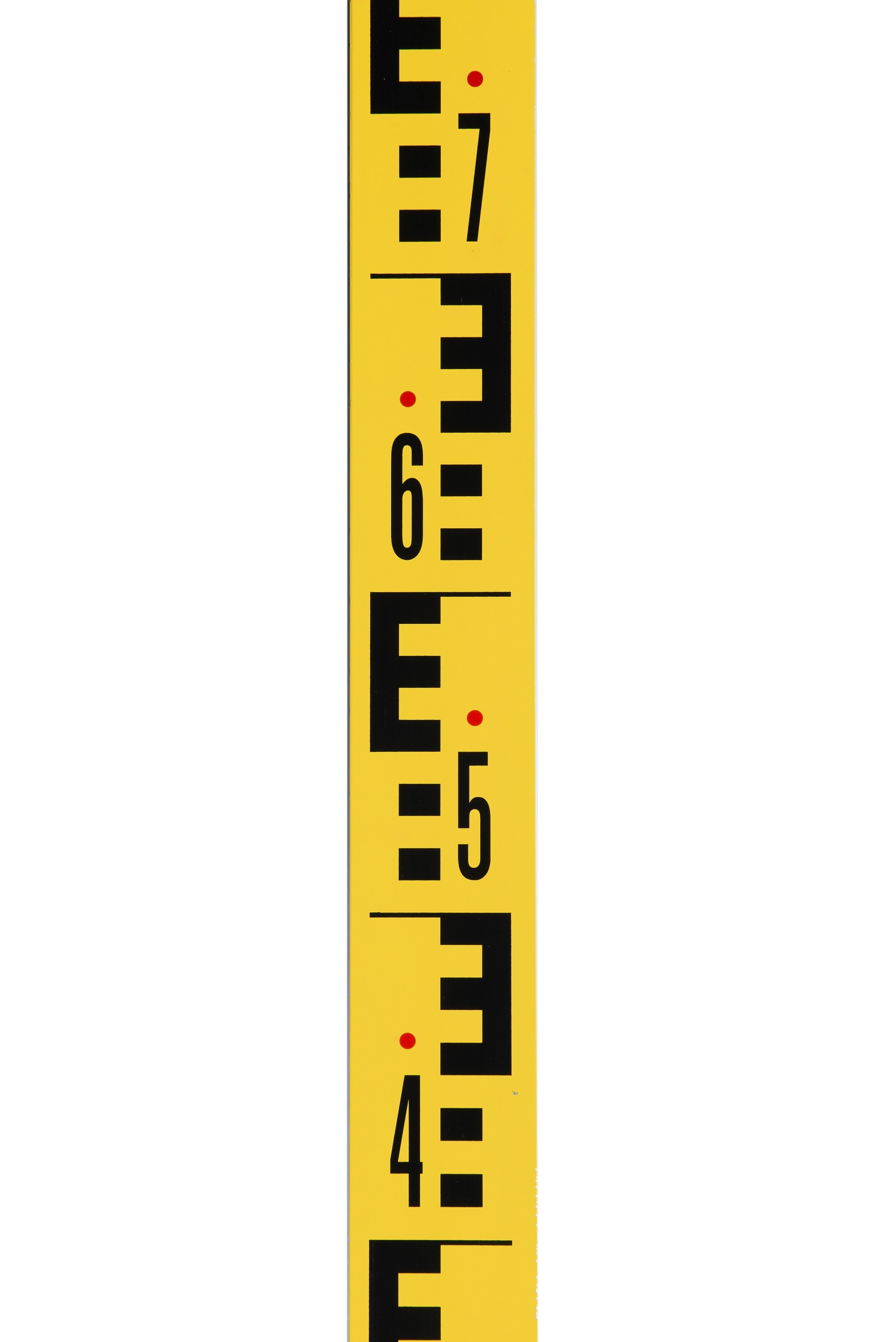

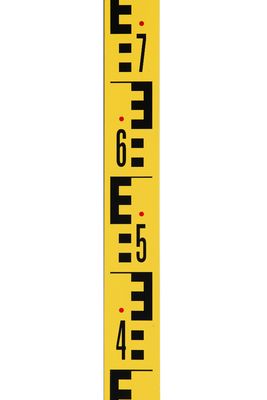

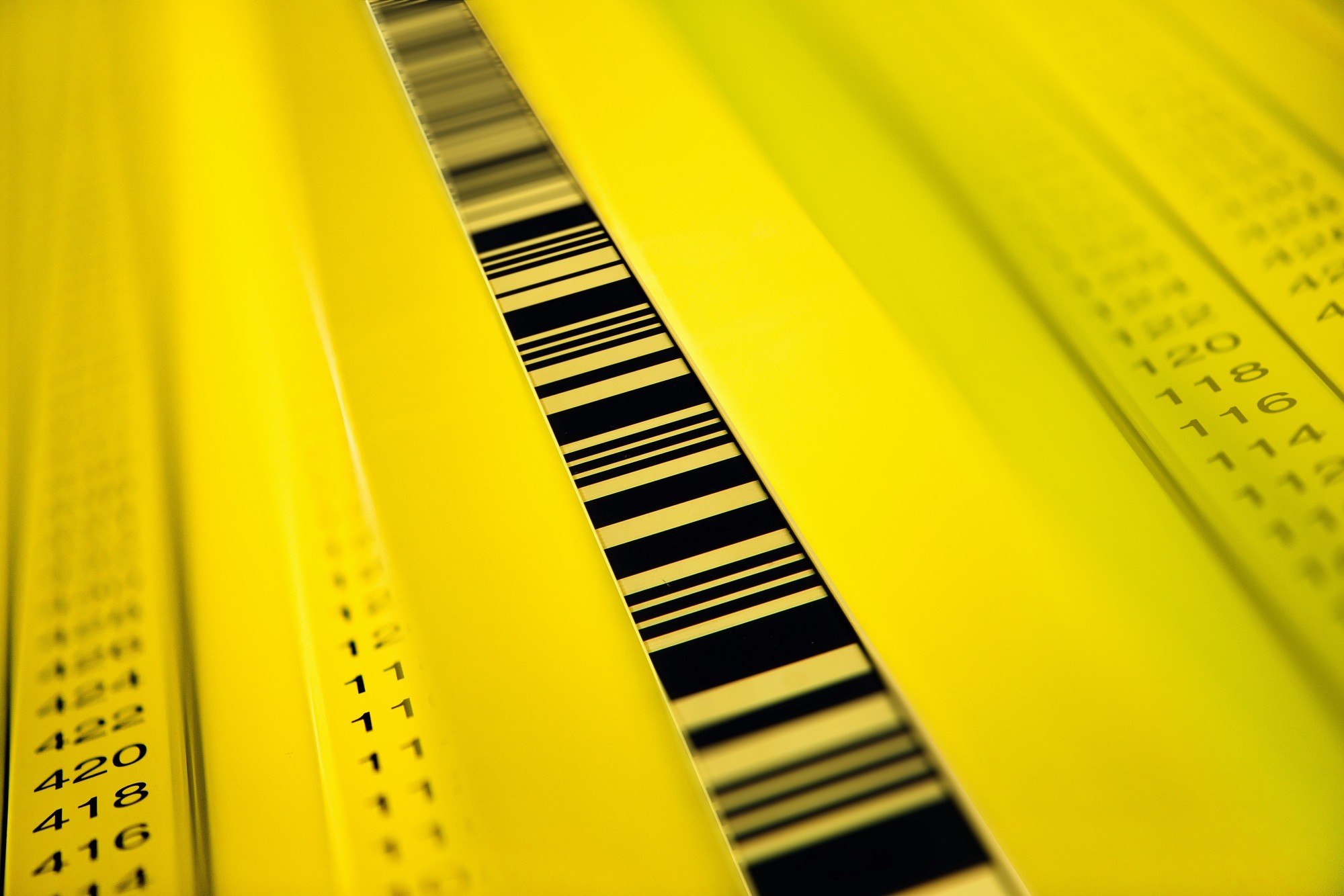

2m Manganese Levelling Surveyors Measuring Rod With Dual Face 0

2m Manganese Levelling Surveyors Measuring Rod With Dual Face 1

2m Manganese Levelling Surveyors Measuring Rod With Dual Face 2
