Tribrach Adaptor Total Station Prism Instrument Parts Yellow
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ADS10 |
| Minimum Order Quantity | 5 Sets |
| Price | 80USD~100USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500 Sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Single Prism Set | Color | Tribrach And Adaptor Yellow |
|---|---|---|---|
| Model | ADS10 | Prism Constant | 0mm/-30mm |
| Prism Diameter | 64mm | Prism Type | Circular |
| Tribrach | Three Jaw | Tribrach Type | Without Optical Plummet |
| Condition | New | Adaptor/Carrier Model | With Optical Plummet |
| Used For | Different Brands Total Stations | Package | Hard Carry Case |
| Highlight | Tribrach Total Station Prism,Adaptor Total Station Prism,Tribrach total station instrument parts |
||
Product Description

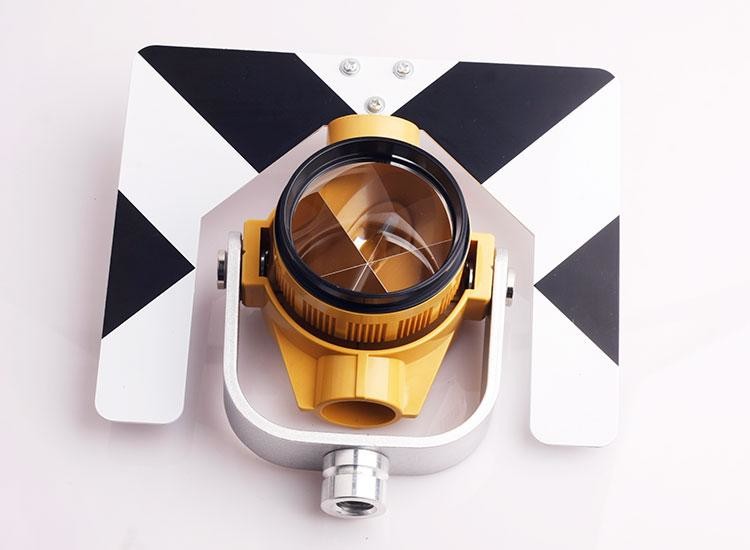

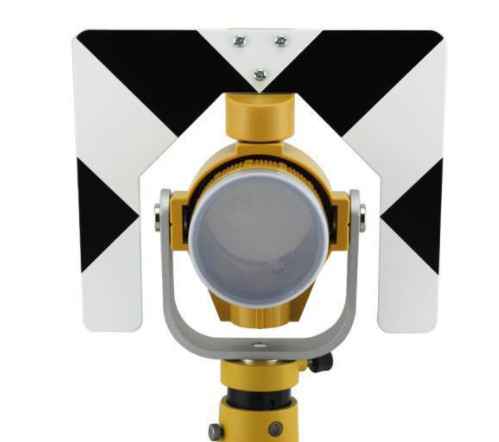

ADS10 Total Station Accessory Topcon Type Single Reflector Prism Set with Hard Case
Model: ADS10
Specification:
| Type | Single Prism Set |
| Color | Tribrach and Adaptor Yellow |
| Model | ADS10 |
| Target Plate | Metal |
| Prism Constant | 0mm/-30mm |
| Prism Diameter | 64mm |
| Prism Type | Circular |
| Thread Type | 5/8x11 female thread |
| Tribrach Type | Three Jaw; without optical plummet |
| Adaptor Type | With Optical Plummet |
| Package | Hard Carry Case |
| Used for | Different Brands Total Station like Sokkia, Nikon, Trimble, Topcon etc. |
| Category | Optics Instruments Accessory |
Prism Range
Surveying Prisms, also known as retro-reflectors, redirect a measuring beam back to the EDM (Electronic Distance Measurement) for processing distance. There are two main factors for good range measurement: prism diameter and beam deviation. If the beam deviation is not accurate then the returned beam will miss the EDM completely. This occurs mainly near the maximum range of the EDM.
Prism Holder Accuracy
Prism accuracy is determined by the physical location of the prism in its canister and then to the prism holder. Certificates of compliance are available upon request. Leosurvey prism accuracy is 1 mm or less.

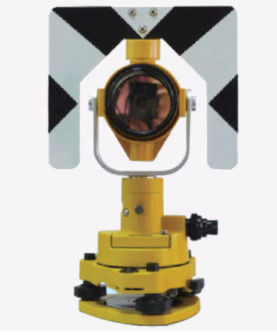

Prism Target Set
Care of the Target Set
A. Cleaning.
1. Clean the plate level and circular bubble with lens paper. If necessary, moisten a cotton ball or swab with ether or pure alcohol. Never use liquids such as benzene, oil, or water
2. Wipe paintwork clean. If necessary, use a cloth dampened with water. Never use liquids such as benzene
3. Wipe a wet instrument carefully with a dry, lintfree cloth. Let the instrument dry completely before placing it back in the case. Never store a wet instrument in its case.
4. Keep the case clean, inside and out. Keep the inside dry. If water gets into the case, wipe it and leave it open to dry completely.
B. Storage and Transport.
1. The target set should not be stored inside the shipping case, remove the instrument from the case so that air can flow around it. This helps to prevent mildew and fungus in the case and instrument. Store the instrument in a low humidity, dust proof area.
2. The target set is shipped and transported in the foam rubber padded transportation cases.
C. Adjustments and Calibration.
1. Test the target set on a regular basis. Adjustments made to a theodolite are useless if the target sets are not properly adjusted.
2. Calibration and repairs for the target set will be conducted through the Survey Instrument Calibration Program (SICP).
