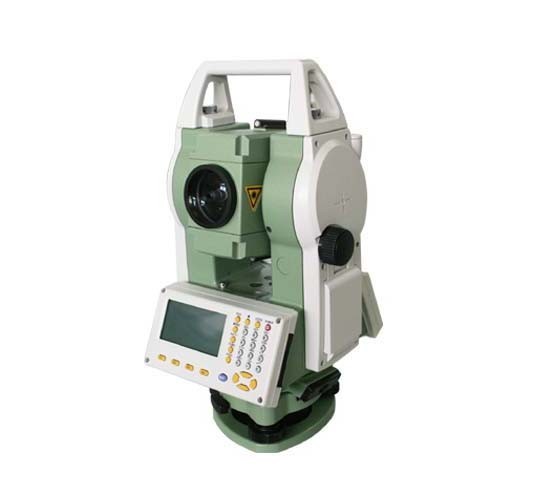

7.4V Electronic Total Station 2mm RTS330 Software Long Range Bluetooth
| Place of Origin | China |
|---|---|
| Brand Name | FOIF |
| Certification | ISO |
| Model Number | RTS332 |
| Minimum Order Quantity | 1 Piece |
| Price | 2000USD~2500USD |
| Packaging Details | Carton |
| Delivery Time | 10~20 Work Day |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | RTS332/RTS335 | Image | Erect |
|---|---|---|---|
| Magnification | 30'' | Shortest Focus Distance | 1.0m |
| Reading System | Absolute Encoder | Accuracy Of RTS332 | 2'' |
| Measuring Range | 2.0 To 600m (800m Optional) | Prism Accuracy | 2mm+2ppm |
| Measuring Time | 1.0s | Compensator | Dual-axis |
| Setting Accuracy | 1'' | Plate Level Vial | 30''/2mm |
| Circular Level Vial | 8'/2mm | Battery | 3400mAh Li-ion Rechargeable |
| Output Voltage | 7.4V DC | Operation Time | 19 Hours |
| Display | Large LCD (240*128 Dots) | CPU | 32Bit |
| Highlight | 7.4V electronic total station,2mm electronic total station,RTS330 |
||
Product Description

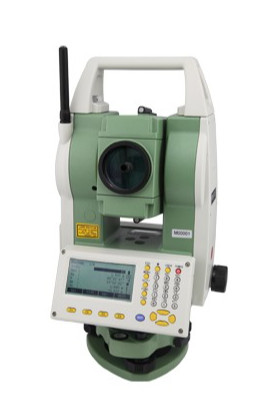

RTS330 Series FOIF Total Station with New Designed On-Board Software Long Range Bluetooth
Model:RTS332/RTS335
Specifications:
| Model | RTS332/RTS335 |
| Image | Erect |
| Magnification | 30’’ |
| Shortest Focus Distance | 1.0m |
| Reading System | Absolute encoder |
| Accuracy of RTS332 | 2’’ |
| Prism | Class 1 |
| Measuring Range | 2.0 to 600m (R600) |
| Prism Accuracy | 2mm+2ppm |
| Measuring Time | 1.0s(Initial: 2.0sec) |
| Compensator | Dual-axis |
| Setting Accuracy | 1’’ |
| Plate Level Vial | 30’’/2mm |
| Circular Level Vial | 8’/2mm |
| Laser Plummet Accuracy | 1mm/1.5m |
| Image | Erect |
| Battery | 3400mAh Li-ion Rechargeable |
| Output Voltage | 7.4V DC |
| Operation Time | 19 Hours |
| Charger | FDJ6-LI(100v/240v) |
| Charging Time | 4 Hours |
| Display | Large LCD (240*128 dots) |
| CPU | 32Bit |
| Memory | 4GB internal memory, support SD card(16G Max) |
| Keyboard | Alphanumerical, both sides |
| Weight | 6.0Kg |
| Interface | USB/RS-232C/Bluetooth(optional) |
| Water and dust Protection | IP55 |
Overview:
Endless drives are applied on RTS330 series, users can collimate target faster with two hands operation. There is a trigger key mounted on the side of the instrument, user do not lose sight of the target while measuring; It has 600m/1000m selectable long reflectorless range. Bluetooth cable-free connection is optional.
Features:
● Horizontal and vertical endless drives are applied on RTS330 series, users can collimate target faster with two hands operation
● There is a trigger key mounted on the side of the instrument, user do not lose sight of the target while measuring; this is particularly important when a lot of points need to be measured
● Multiple data interface such as SD card, mini USB or RS-232C connection are available
● Bluetooth cable-free connection offers solution of semi-automatic data collection. Reflectorless measuring distance reaches to 600m(R600) or 1000m(R1000). High precision of 2mm+2ppm in prism mode.
● On board software and application programs simplify and speed up work in the field. The user is guided through the routines by clear menus and measurement prompts
FOIF provides total station solutions to meet all your surveying needs. Measurements have never been so easy to perform as with the FOIF Total Station, which allows beginners and professionals to do the job quickly and efficiently.
