South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen

  • South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen
  • South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen
Place of Origin China
Brand Name South
Certification ISO
Model Number Navi Station
Minimum Order Quantity 1 Piece
Packaging Details Carton
Delivery Time 3~5 Work Days
Payment Terms T/T
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Navi Station Image Erect
Magnification 30X Single Prism 5000m
Reflectorless 2000m Accuracy ±1.5mm At 1.5M Instrument Height
Prism Accuracy ±(2+2ppmxD)mm Measure Interval Fine: 0.3s, Tracking: 0.1s
Compensator Liquid, Dual Axis Compensation Battery Li-ion Rechargeable
Output Voltage 7.4V DC Operation Time 10 Hours
Condition NEW Dual Screen YES
Connections USB, RS232, Bluetooth Waterproof And Dust Proof Grade IP55
Display TFT LCD Screen, Graphics, 720*1280 Dimension 200mm*170mm*350mm
Weight 5.7kgs Microphone / Speaker Available
WLAN Dual-Band Single Stream 802.11 A/b/g/n RF For Data Link Bluetooh 4.0
Network 2G 3G 4G Single Point Positioning Single: H≤3m, V≤5m (1σ, PDOP≤4)
RTD Surveying H: ±0.5m, V: ±1.0m Static Surveying H: ±(2.5mm+1ppm X D), V: ±(5mm+1ppm X D)
Real-time Kinematic Surveying H: ±(10mm+1ppm X D), V: ±(20mm+1ppm X D) Time To First Fix Cold Start <50s, Warm Start <45s
Signal Re-acquisition <3s RTK Initiation Time <15s
RTK Initiation Reliability >99.9% Signal Tracking BDS-2: B1, B2, B3 GPS: L1, L2C, L2P, L5 GLONASS: L1, L2 GALILEO: E1, E5a, E5b SBAS
Satellite Tracking 574 Channels Internal Memory RAM: 3GB; ROM: 32GB
Processor MT6753 Operating System Android 6.0
Laser Plummet Type Laser Class 2/IEC60825-1; 4 Brightness Level Plate Vial 30"/2mm
Circular Vial 8'/2mm Telescope Reticle Illuminated, 4 Brightness Level
Focusing Range 1.2m Field Of View 1°30'
Resolving Power 3” Effective Aperture 45mm (EDM:50mm)
Telescope Tube Length 154mmTube Length 154mm Compensator Range ±4'
Compensator Setting Accuracy 1” Display Resolution 0.1”
Diameter Of Encoder Disk 79mm Measure Method (HZ/V) Absolute Continuous, Diametrical
Leave a Message
Product Description

South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen

Brand: South
Model: Navi Station

Navi Station Total Station Highlights:

● Fully Integrated GNSS

● Simply Setup the Station Wherever You Want

● Without the Limitation of Known Points

● Up to 2000m Reflectorless EDM

● Cable-free Connection by Bluetooth

● Intelligent Workflow under Android 6.0

Introduction:
Features Android O.S, Navi Station provides an intelligent solution that integrates GNSS receiver on Total Station. Simply setup and determine the position of occupied point by GNSS receiver to centimeter accuracy, among the range of 40km from a reference station.
Navi Station allows you to work quickly and effectively right from the beginning.

Features:

  1. Dual Laser EDM

2000m Non-prism
Stronger return signal due to its dual laser technology

  1. Stable Measurement

Accuracy: 2+2ppm
Extremely fast (0.3s) speed under fine mode

  1. USB OTG, TF Card and Bluetooth

Flexible transfer of data via PC or PDA WLAN & 4G Module
Quick access to internet

  1. 5.0 inch Color and Touch Screen

Built-in high resolution display numerical keypad
Faster and easier input of data

  1. Intelligent O.S

Android 6.0 O.S
User friendliness
Free SDK package for developer

  1. All Constellations

Enable the satellite tracking from BDS, GPS, GLONASS and Galileo with 574 channels
Horizontal: 10+1ppm
Vertical: 20+1ppm

Total Station Accessories:

1. Instrument
2. Batteries
3. Battery charger
4. Communication cable
5.. Tool kit
6.. Rain protection bag
7. Instruction manual
8. Carrying case

Battery in Total Station

  1. Mounting the battery

Insert the battery by aligning the battery pack’s tenon with the notch in the instrument, press the battery clamp and push the top of the battery pack until you hear a click.

  1. Removing the battery

Press the battery clamp and remove the battery pack by pulling it toward you.

  1. Battery Indicator

Battery power display indicates the power condition. You should recharge or replace the battery when you hear the continue buzz. Please turn off in the normal way in order to save the data. Please find the battery operating time on specifications.

Recharge in Total Station

  1. Plug the charger on 100-240VAC (50-60Hz) power supply, the red lamp lighting.
  2. When recharge is complete, the light become green. Normally, it will take about 3~4 hours.

Caution: For indoor use only.
Note:

  1. The new battery (or not the used for long time) need to recharge and discharge for several times, the battery could become the good performance for using. Please recharge more than 10 hours.
  2. Please prolong charge 1~2 hours after green lamp lighting to reach the best performance.
  3. Lamp situation:

Red lamp lighting--charging;

Green lamp lighting--charge complete

Red lamp flash—waiting, not connecting or battery defective.

  1. If the red lamp flashes when plug the charger, please remove the charger and wait a minute to plug it again.

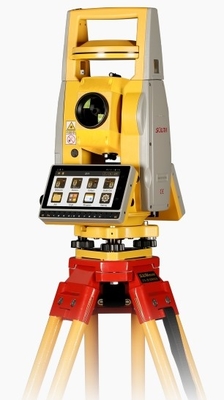

South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen 0

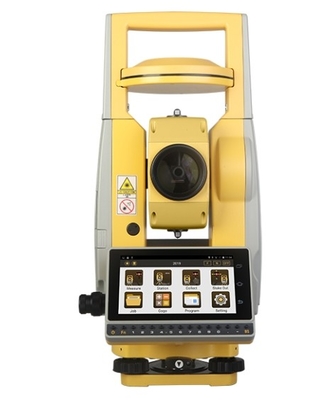

South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen 1
