Monitoring Mining GPR112 Surveying Reflector Prism M8 Thread Survey Prisma

Leica Monitoring Mining Prism GPR112 Surveying Reflector Prisma

Model: GPR112

Description:

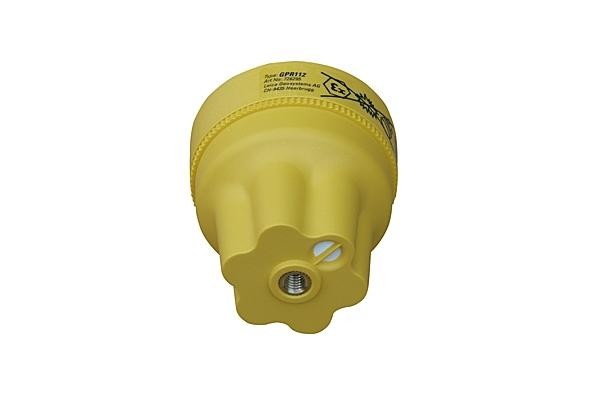

GPR112 Monitoring-Mining Prism with M8 internal threat in the back for direct mounting and 5/8‘’ adapter.

Technical Data:

Overview:

1. For monitoring

2. With rain shelter

3. M8 or 5/8’’ threaded bolts

4. Built-in filter

5. Range 2,500m (8,200ft)

6. Large Diameter

Features:

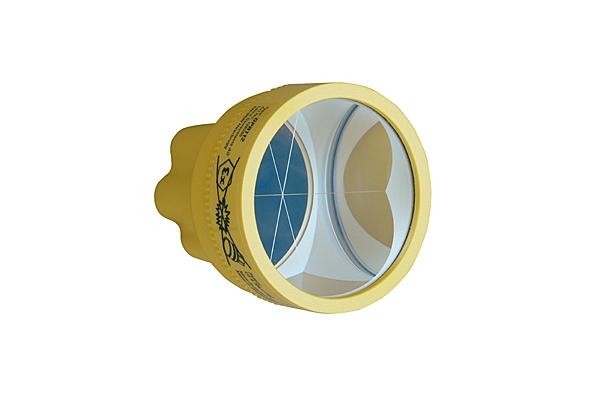

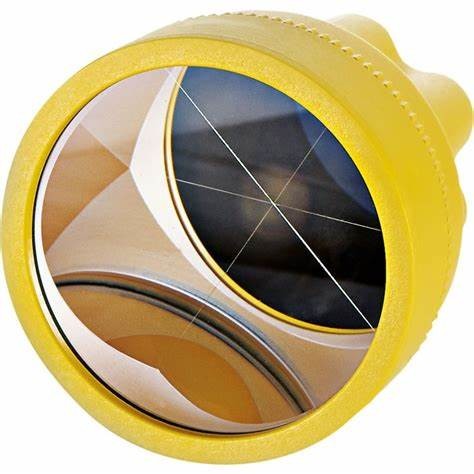

• 60 mm long-range mining & prism monitoring
• Mounting kit with 5/8" and M8 adapters
• Weather shield to protect front of prism from rain, dust & snow

GDZ112 Rain Shelter for GPR112

Rain shelter for monitoring prism GPR112. Full availability of the prism even in rainy and snowy conditions. The rain shelter protects the prism front against rain drops, snow and dust.

Whole Set Includes:

Prism GPR112

Mounting set GHT112 for GPR112

Rain shelter GDZ112

Packing:

Paper Box

Other prisms available:

GPR1

GPR121

GPR111

GMP111

GRZ101

GMP104

GRZ4

GRZ122

MPR122
