FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy

  • FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy
  • FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy
  • FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy
  • FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy
  • FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy
Place of Origin China
Brand Name FOIF
Model Number RTS010A
Minimum Order Quantity 1 set
Packaging Details Box Carton
Delivery Time 5~8 working days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Angle Accuracy 1'' Dectecing Method Four Probe
Reflectorless Range 1000m Reflective Sheet Range 1200m
Single Prism Range 6000m Time For Fine Mode Less Than 0.7s
Magnification 30X Image Erect
Shortest Focus Distance 1.0m Display Size 3.5 Inch
Color Display YES Dual Display Screen YES
Resolution Of Display 320*240 Compensatory Type Dual Axis
Laser Plummet YES ART Working Range 1000m
Positioning Time 3~4s Battery 7.4v 5.8ah Lithium
Operating Time 5~8 Hours Software WINCE7.0
USB YES Bluetooth YES
Dustproof And Waterproof Grade IP55 RS232 YES
Connectors Standard USB/mini USB/RS-232C/Bluetoooth Long Range Auto Leveling No
LED Indicators No Guide Light YES
Leave a Message
Product Description

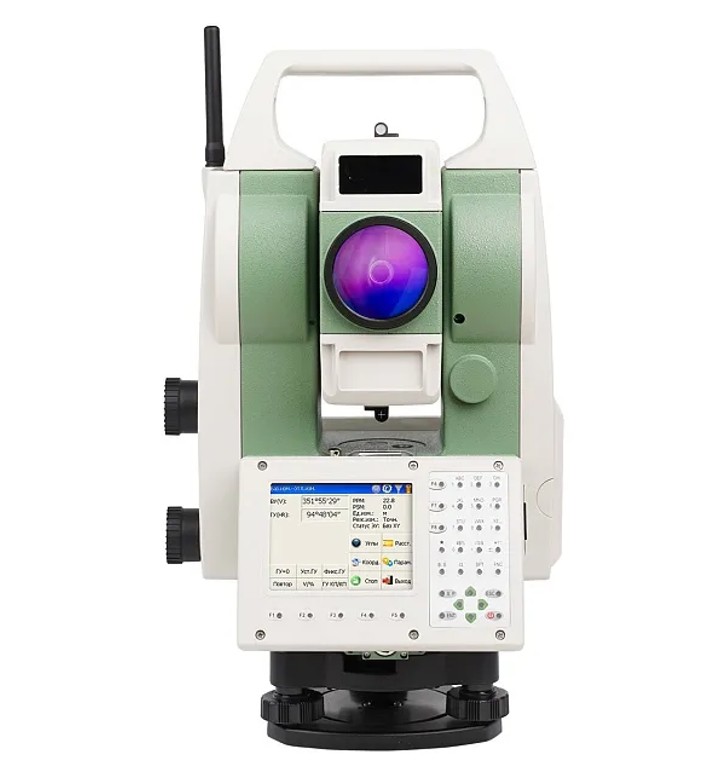

FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy 0
Item Introduction
RTS010A(1" angle accuracy) is our first generation of robotic total station adopting gear motor drive technique to realize ATR function. It supports one man survey with FOIF Inspire android app.
RTS010A adopts up-to-date automatic target recognition and positioning technology, achieves the accuracy of 1″(angle measurement ) and 1mm+1ppm(distance measurement in prism mode), supports SDK and external control protocol for software developing and can be applied for high precision surveying areas, such as rail traffic monitoring, dam monitoring.

Applications:
Bridge Engineering Construction
Tunnel Construction
Emergency and Fire Protection Service
Water Conservancy Facilities Construction
Inspection of Building Facilities
Three-dimensional Industrial Measurement
Deformation Survey of Foundation Pit
Ship Building Survey


Highlights:
High grade accuracy
Angle measurement accuracy: ± 1", distance measurement accuracy: 1mm+1ppm(Prism)
Long reflectorless range
1000m long range reflectorless distance measurement.
Modern technology adopted
Vertical shafting: dense ball bearing and four detectors design; Horizantal shafting: unitary and four detectors design
Latest ATR technology
Adopts up-to-date automatic target recognition and positioning technology
Third party softwares supported
Supports SDK and external control protocol for software developing
Updated operating system and on-board softwares
Windows CE 7.0 operating system, onboard software: FOIF Survey,FOIF Fieldgenius or Carlson SurvCE
Monitoring-grade instrument
Applied for high precision surveying areas, such as rail traffic monitoring, dam monitoring

Specifications

RTS010A Robotic Total Station
BrandFOIF
ModelRTS010A
Angular Measurement
Angle Measurement Accuracy1’’
Measuring MethodAbsolute Encoder
Detecting MethodFour-probe
Min. Display0.1"
Distance Measurement
Reflectorless Range1000m
Reflective Sheet Range1200m
Single Prism Range6000m
Reflectorless Accuracy3mm＋2ppm
Reflective Sheet Accuracy2mm＋2ppm
Single Prism Accuracy1mm＋1ppm
Time for Fine Mode＜0.7s
Telescope
Magnification30X
ImageErect
Resolution3”
Field of View1°30’
Shortest Focus Distance1.0m
General
Display and Keyboard3.5-inch; Resolution 320 x 240;Color; Touchscreen; Double Displays; Backlight Illumination+Auto Sensitivity

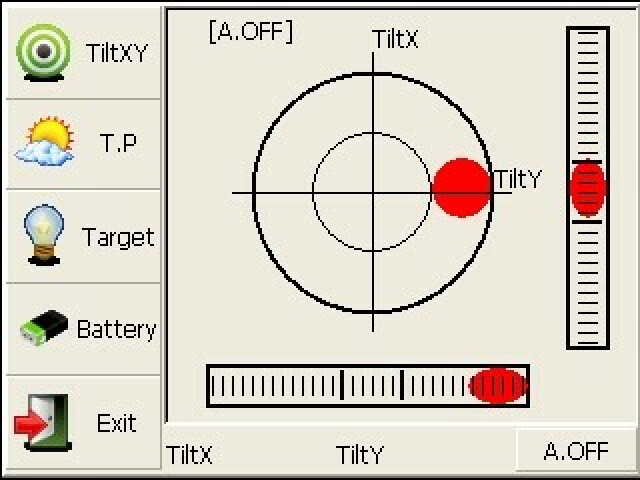

Compensator

Type: Dual-axis
Range: ≥±3′

Level Vial

Plate level:30″/2mm
Circular level:8′/2mm

Laser Plummet

Type:635nm semiconductor laser
Accuracy:±1mm/1.5m
Spot:≤2.5mm/0.5~2m

ATR

Working range:5～1000m
Positioning accuracy:±1.5mm(≤200m); ±1.5 " (>200m)
Positioning time(in the field of view of telescope):3-4S

Endless Drive1 horizontal, 1 vertical
Power

Battery: 7.4V 5.8Ah lithium battery
Operating Time: 5~8 hours

Software SystemOS: WINCE7.0
Data Interfaces/CommunicationSupport U disk, RS232C, USB, Bluetooth
Dustproof and waterproof gradeIP55(IEC60529)
Working Temperature-20℃ ～+50℃
Storage Temperature-40℃ ～+60℃

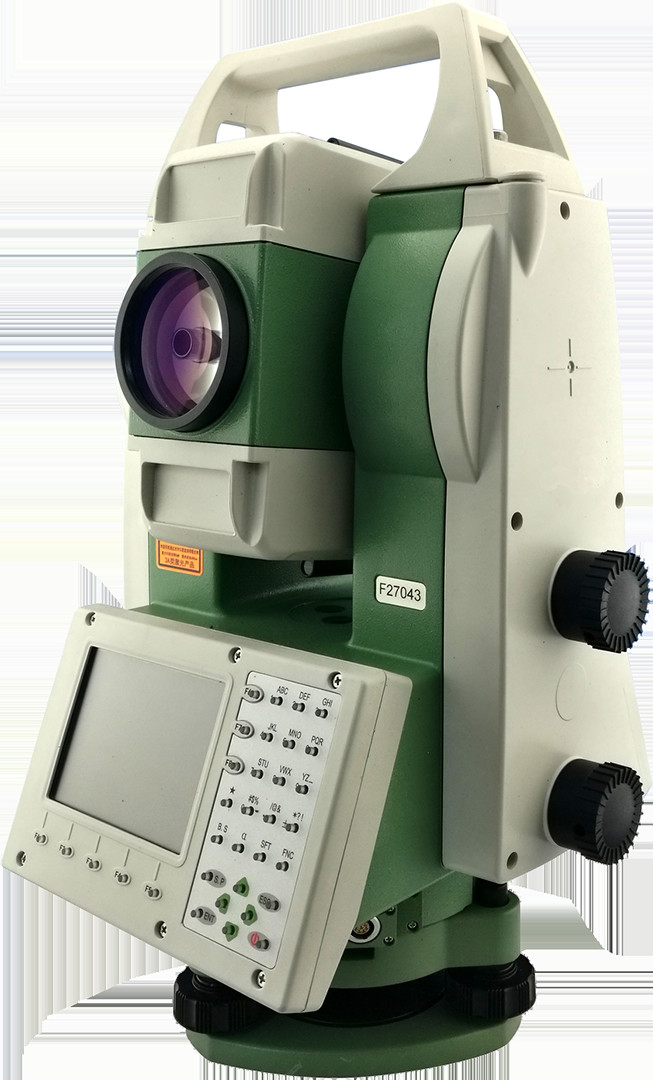

FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy 1

FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy 2

FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy 3
